VKT-150R-CPU
The VKT-150R-CPU is a 15-inch fanless industrial panel PC with a 1024 x 768 display, 5-wire resistive touch and an IP65-rated front panel. Intel N95 and 12th Gen Core i3/i5/i7 processor options support different project requirements. DDR4 memory, M.2 SSD storage, HDMI/VGA outputs and configurable serial connectivity provide flexible integration. A 9-36 VDC input, VESA 75/100 mounting and panel-mount installation support industrial deployments.
15-inch Fanless Industrial Panel PC

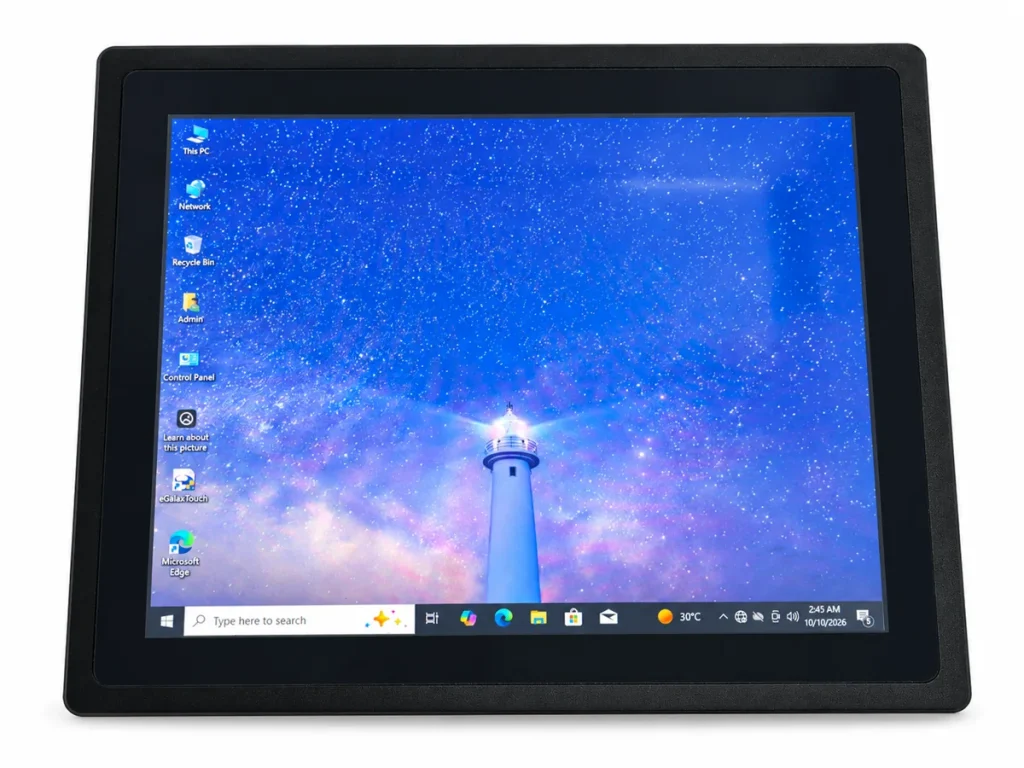

The VKT-150R-CPU combines a 15-inch, 4:3 industrial display with a configurable Intel computing platform. Its 5-wire resistive touchscreen supports single-touch operation, while the IP65 front panel and passive cooling design suit industrial operator interfaces and equipment integration.
Key Features
- 15-inch 1024 x 768 LCD; 250 cd/m² typical brightness, panel-dependent.
- Intel N95 / Core i3-1215U / i5-1235U / i7-1255U processor options.
- One DDR4 SODIMM slot, up to 16 GB; M.2 NVMe/SATA SSD support.
- 5-wire resistive, single-touch operation with an anti-glare surface.
- IP65-rated front panel and fanless passive cooling.

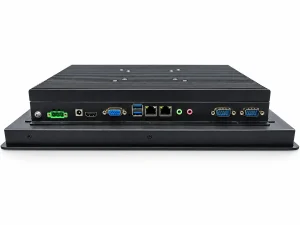

- HDMI and VGA outputs; USB and configurable RS-232/RS-485 connectivity.
- 9-36 VDC input; VESA 75/100 and panel mounting.
- Operating temperature: -20 to 70 °C.
- Dimensions: 370 x 294 x 63 mm; net / gross weight: 7 / 8.5 kg.
Specifications are summarized from the datasheet revised on 12 October 2026. Processor, display and I/O configuration may vary. Product photos are for reference; confirm the selected configuration before ordering.
| Item | Specification |
|---|---|
| Computer System | |
| Processor options | Intel N95 / Core i3-1215U / Core i5-1235U / Core i7-1255U |
| Memory | 1 x DDR4 SODIMM; single-channel 3200 MHz, 1.2 V; up to 16 GB |
| Storage | M.2 2280 Key-M: PCIe 3.0 x2 NVMe / SATA auto-select SSD; optional M.2 2242 storage |
| Graphics | Intel UHD Graphics |
| Preinstalled OS | Windows 10 Pro |
| Display & Touch | |
| LCD | 15-inch; 1024 x 768; 4:3 |
| Active area | 304.13 x 228.10 mm (typical) |
| Brightness | 250 cd/m² typical, panel-dependent; PWM software adjustment |
| Contrast | 1000:1 typical, panel-dependent |
| Touch | 5-wire resistive, single-touch; anti-glare |
| Touch surface | 3H hardness; ≥80% light transmittance (typical) |
| Touch controller compatibility | Windows and Linux; configuration-dependent |
| Connectivity | |
| USB | 2 x USB 3.0; 2 x USB 2.0 |
| Serial | 2 x RS-232; 2 x RS-485, configurable through motherboard and BIOS |
| LAN | 1 x RJ45 Gigabit Ethernet, per datasheet; photographed layout may differ by configuration |
| Video | 1 x VGA; 1 x HDMI |
| Audio | 1 x 3.5 mm line-out; 1 x 3.5 mm line-in; Realtek ALC897 |
| Other I/O | 1 x GPIO; power on/off button |
| Power & Mechanical | |
| Power inputs | 12 VDC jack; 3-pin terminal block for 9-36 VDC |
| Power adapter | 100-240 VAC input; 12 VDC / 5 A maximum output; 60 W adapter rating |
| Cooling | Fanless passive cooling |
| Protection | Front panel IP65 |
| Construction | Aluminum-alloy front bezel; zinc-plated cold-rolled steel rear housing |
| Finish / color | Hard-anodized front bezel; powder-coated rear housing; black or full silver |

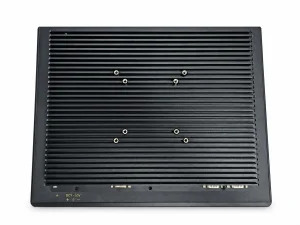

| Mounting | VESA 75 / 100; panel mount |
| Product dimensions | 370 x 294 x 63 mm |
| Net / gross weight | 7 kg / 8.5 kg |
| Power consumption | Configuration-dependent; to be confirmed |
| Environment & Supply | |
| Operating temperature | -20 to 70 °C |
| Storage temperature | -30 to 80 °C |
| Humidity | Up to 90%, non-condensing |
| Vibration | GB/T 2423.10-2019 (IEC 60068-2-6:2007) |
| Shock | GB/T 2423.5 (IEC 60068-2-27:2008) |
| Accessories | Power cord, power adapter, panel-mount clips and screws |
| Warranty | 1 year |
| Certifications listed in datasheet | CE, FCC and RoHS |
Specifications are subject to change without notice. Display characteristics and port layout may vary with configuration. Verify final mechanical data before integration.
Datasheet Revision 12 October 2026
This product page reflects the latest supplied specification: Intel N95 and 12th Gen Core i3/i5/i7 processor options, Windows/Linux touch support, dimensions of 370 x 294 x 63 mm and net/gross weight of 7/8.5 kg.
Please contact KHT for the latest datasheet.
Product images and dimensional drawings are for reference only. Confirm final port layout and mechanical data before integration.
